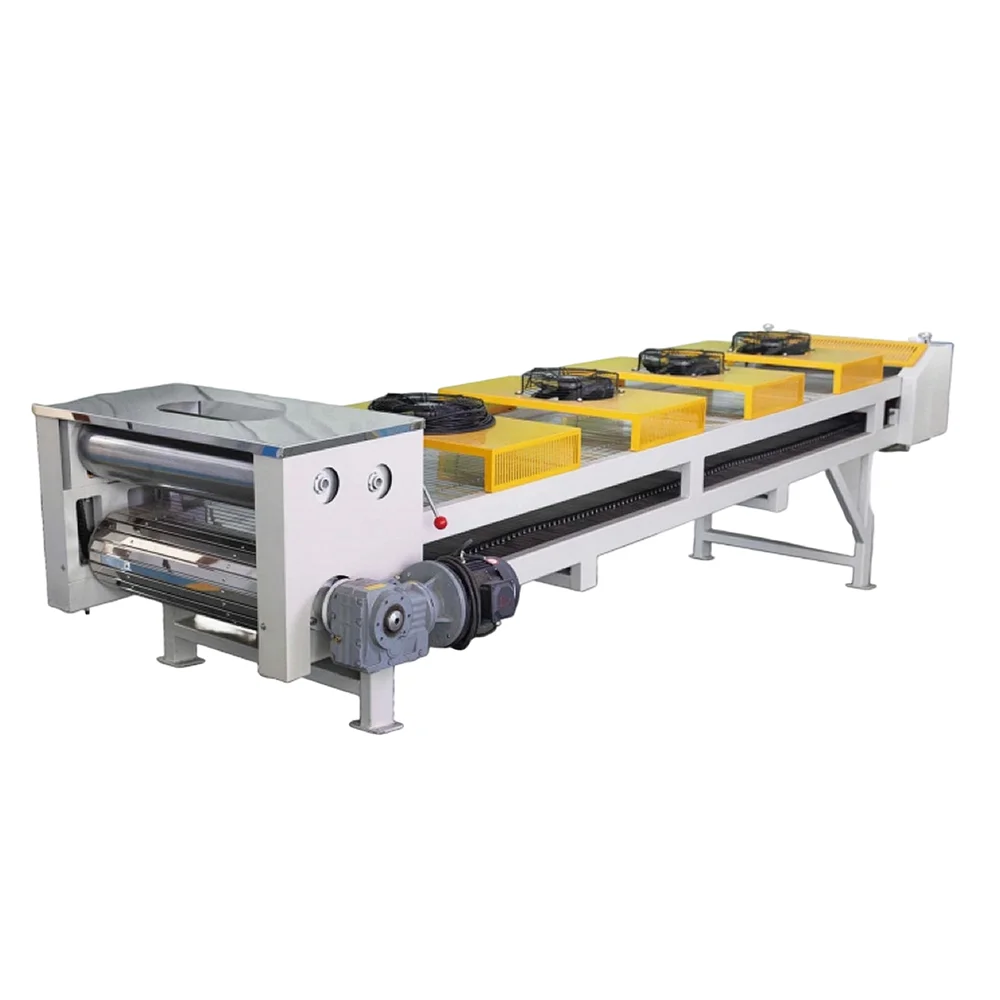

Fan Type Cooling Belt

Cooling Belt

(0Reviews)

Features：

1. Easy maintenance.

2. Stainless steel chain plate.

3. High hardness alloy compression roller.

4. Two emergency stop buttons ensure safety.

5. Stainless steel inner tank with water circulation.

Inquire Now

PRODUCT INTRODUCTION

Fan Type Cooling Belt is a continuous conveying equipment adopting natural convection fan cooling, mainly for rapid cooling and conveying of powder coating extrudates.

It continuously cools high-temperature materials via cooling fans, quickly bringing down material temperature for subsequent crushing and milling processes. Ideal for powder coating production lines requiring high cooling efficiency and continuous production capacity.

The fan type cooling belt features modular cooling structure with VFD variable-frequency speed control, for flexible adjustment of conveying speed and cooling performance. Different specifications are equipped with different numbers of fans to realize matched cooling capacity according to equipment length, throughput and actual process. Made of stainless steel for longtime continuous industrial operation.

Technical parameters

Model	Unit	YPJ-408	YPJ-508	YPJ-612
Output	(kg/h)	150-200	300-400	500-700
Roller speed	Frequency Control
Belt effective length	(mm)	3500	4500	5500
Belt effective width	(mm)	800	800	1200
Roller diameter	(mm)	219	219	219
Motor power	(kw)	1.5	1.5	2.2
Fan power	(w)	145W×3	145W×4	145W×5
Dimensions(L×W×H)	(mm)	4000×950×1450	5000×950×1450	6000×1350×1550
